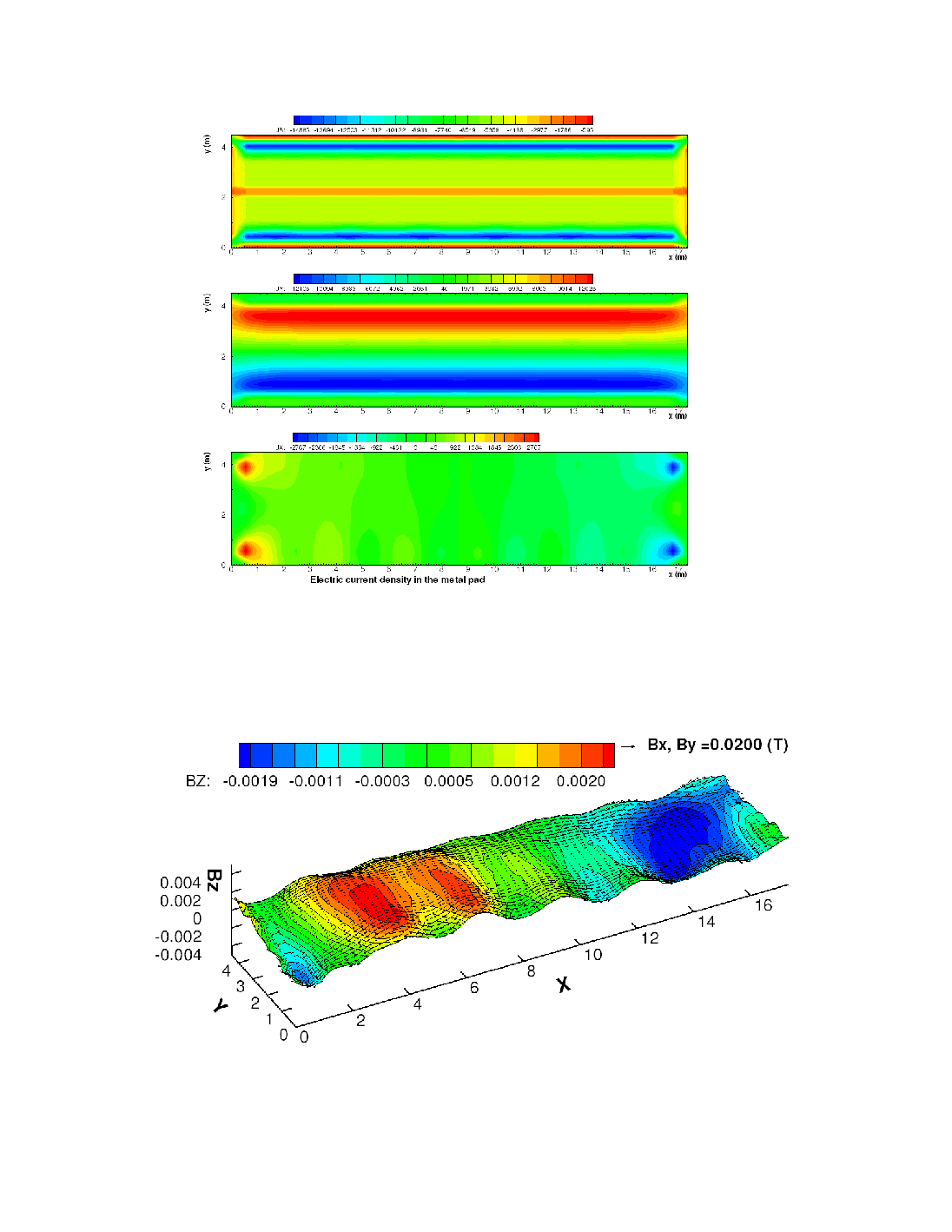

Figure 14: MHD-Valdis model metal pad current density field solution
Figure 15 presents the obtained initial metal pad magnetic field. With the help of
the compensation busbar, the intensity of the vertical (Bz) component is quite low as
required to ensure the cell MHD stability.
Figure 15: MHD-Valdis model metal pad magnetic field solution
