MM $ per year of operating cost for a typical modern smelter
simply by changing the shape of the stub hole former! Of course, a
much more detailed optimization study should be able to identify
designs offering even more voltage drop reductions!

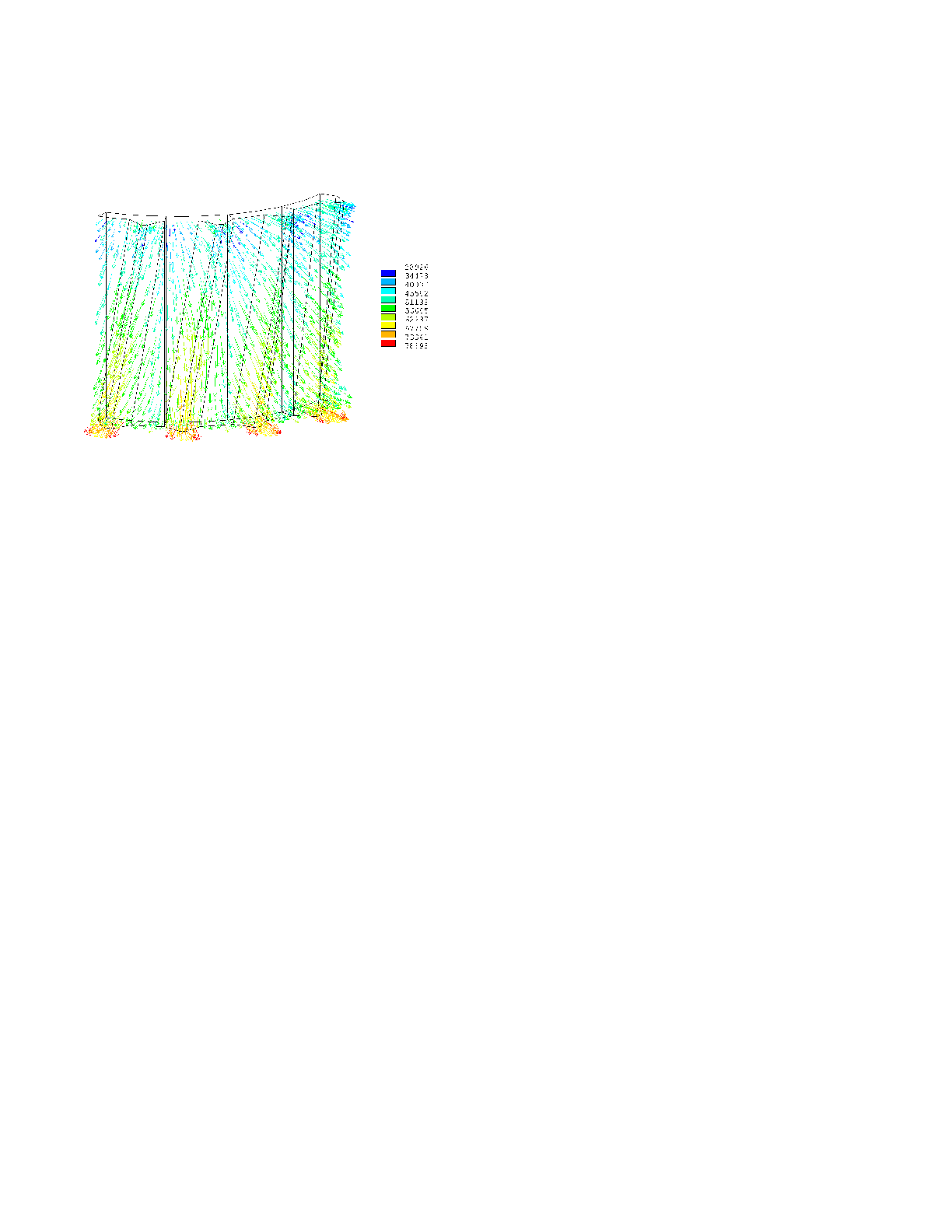

Figure 11:
Current density distribution in the cast iron (A/m2)
Acknowledgements
The author wishes to thanks Mr Lalit Mishra of Dubal and Mr.
Dave Looman of ANSYS Inc. for their much needed assistance in
using ANSYS® 12.0 advanced thermo-electro-mechanical contact
elements features, especially the %table% option.
References
1. D. Richard, "Conception des tourillons d'anode en usage dans
une cuve de Hall-Héroult à l'aide de la méthod des éléments
finis", M.Sc. Thesis, Université Laval, Québec, Canada, (2000).
reduction cell energy balance models to assist efforts to
increase Lauralco's smelter productivity", ANSYS 8th Int.
Conf., Vol 2, (1998), 2.233-2.240.
3. T.X. Hou, Q. Jiao, E. Chin, W. Crowell and C. Celik, "A
numerical model for improving anode stub design in aluminum
smelting process", Light Metals, TMS, (1995), 755-761.
4. M. Sørlie and H. Gran, "Cathode collector bar-to-carbon
contact resistance", Light Metals, TMS, (1992), 779-787.
5. F. Hiltmann, J. Mittag, A. Støre and H.A. Øye, "Influence of
temperature and contact pressure between cast iron and cathode
carbon on contact resistance", Light Metals, TMS, (1996), 277-
283.
6. L. St-George, L.Kiss and Mathieu Rouleau, "Evaluation of
contact resistance in electrodes of Hall-Héroult process", Light
Metals, TMS, (2009), 1103-1108.
7. P. Goulet, "Modélisation du comportement thermo-électro-
mécanique des interfaces de contact d'une cuve de Hall-
Héroult", Ph. D. Thesis, Université Laval, Québec, Canada,
(2004).
"Challenges in stub hole optimization of cast iron rodded
anodes", TMS, (2009), 1067-1072.
9. H. Fortin, M. Fafard, N. Kandev and P. Goulet, "FEM analysis
of voltage drop in the anode connector assembly", TMS,
(2009), 1055-1060.
10. M. Dupuis, "Using ANSYS to model aluminum reduction cell
since 1984 and beyond", ANSYS 10th Int. Conf, (2002),
11. M. Dupuis, "Modeling aluminum reduction cell since 1980 and
beyond", Workshop in numerical simulations for aluminum
industry, EPFL, (2004),
.
12. D.G. Brooks and V.L. Bullough, "Factors in the design of
reduction cell anodes", TMS, (1984), 961-976.
